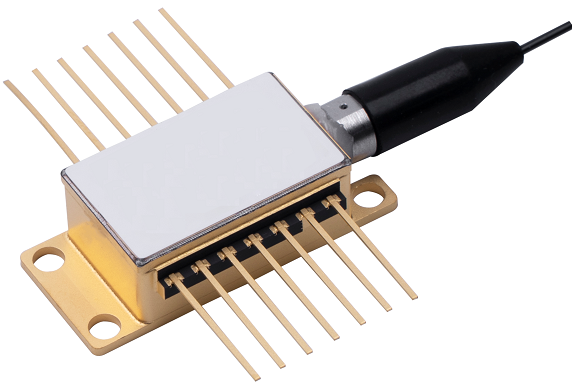

Butterfly Laser Diode
The 14-pin Butterfly Laser Diode is a compact, high-stability laser source featuring a hermetically sealed butterfly package with integrated thermoelectric cooling (TEC) and temperature monitoring. Designed for reliable wavelength control and low noise operation, this laser diode delivers stable output under varying environmental conditions. Its 14-pin footprint and adaptable fiber coupling make it ideal for applications in sensing, optical communication, instrumentation, and precision photonics systems.
Butterfly Laser Diode
- High Power Output
- Excellent Wavelength Stability
- Narrow Spectral Linewidth
- Standard 14-PIN Butterfly Package
- Fiber Output: 105/125 Multimode Fiber, FC/PC Connector (Optional)
- Free Space Beam Output (Optional)
- Good Compatibility
- Raman Spectroscopy Detection
- Optical Sensing
- Medical Diagnostics
- Biological Instrumentation
- Other Related Fields.
Parameters
| Parameters | Min | Typ | Max | Unit |
| Output Power. | 1200 | mW | ||
| Center Wavelength | 785/830/1064 | nm | ||
| Spectral Width（FWHM） | 0.1 | nm | ||
| Side mode Suppression Ratio | 30 | dB | ||
| Operating Current | 2 | A | ||
| Operating Voltage | 2.2 | V | ||
| TEC Temperature Setting | 15 | 40 | C | |
| TEC Current | 2.5 | A | ||
| TEC Voltage | 4.8 | V | ||
| Thermistor Resistance @ 25℃ | 10 | kΩ | ||
| PD Operating Voltage | -5 | V | ||
| PD Current | 2 | mA | ||
| Operating Temperature | -20 | 50 | ℃ | |
| Storage Temperature | -40 | 85 | ℃ |

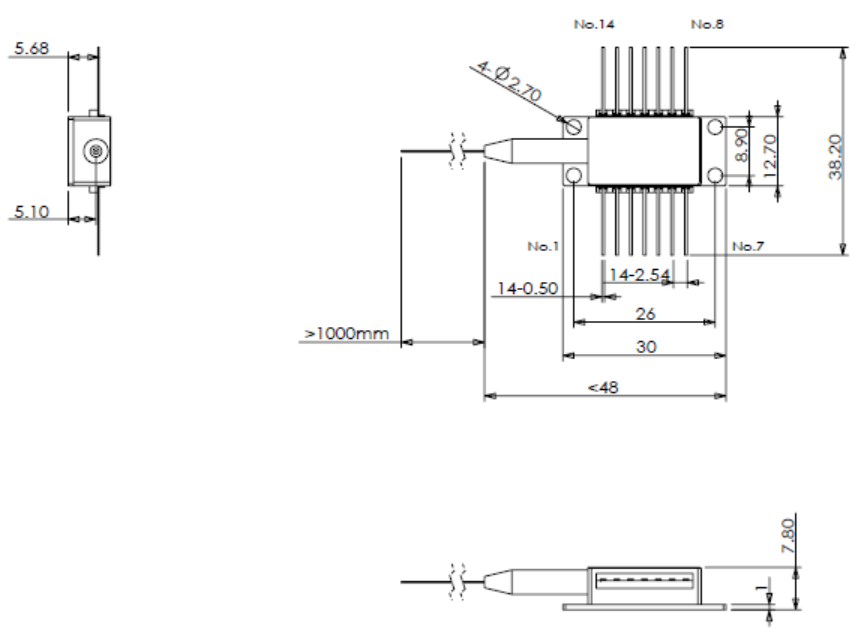

Mechanical Dimensions and PIN Definition:
| PIN | Description | PIN | Description |
| 1 | TEC(+) | 8 | PD(+) |
| 2 | N.A. | 9 | LD(-) |
| 3 | N.A. | 10 | N.A. |
| 4 | Rt. | 11 | N.A |
| 5 | Rt | 12 | N.A. |
| 6 | LD(+) | 13 | N.A. |
| 7 | PD(-) | 14 | TEC(-) |
