MHz/GHz 2.0µm Narrow Linewidth CW Lasers

Fiber laser components, Fiber laser modules

Based on the design of master oscillator power amplifier (MOPA) architecture or direct resonant cavity architecture, the narrow linewidth CW lasers can realize high power output ranging from milliwatt (mW) to hundred watts. The adopted pumps commonly are the semiconductor lasers or fiber lasers in waveband 793nm and 1570nm. These CW lasers come with linear polarization or random polarization, suitable for applications including device testing, medical treatment, remote sensing, LiDAR, mid-IR pumping, etc. and the wavelengths are available in 1908nm, 1940nm, 1950nm, 2004nm, 2050nm, etc.

Our GHz 2.0µm high power CW thulium doped fiber lasers utilize microprocessor-based control system, which is featured by stable performance and maintenance-free operation. Through a clear interface LCD on the front panel, working state including output power and temperature can be displayed in real-time, warning messages will be sent in a timely manner.

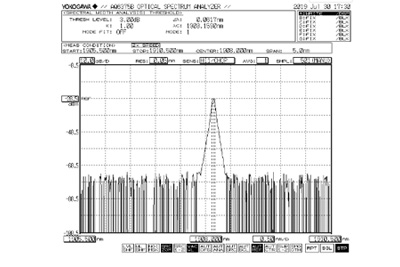

Measured spectrum (Output=10W)

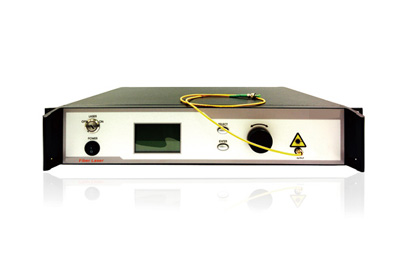

1908nm High Power CW Thulium Fiber Laser (Single-mode, 100W)

Features

Excellent beam quality
Stable power, reliable performance
Linear polarization output is optional
Narrow linewidth
All-fiber structure design

Applications

Medical treatment
Mid-infrared pump source
LiDAR
Device testing
Plastic material processing
Nonlinear effect studies
Other scientific research tasks

This mode-locked fiber laser is 1560nm picosecond pulsed fiber laser with narrow spectral width below 1nm, and pulse width of 10-50ps.

1908nm CW Thulium Fiber Laser (Single-mode, 40W)

Features

Excellent beam quality
Stable power, reliable performance
Linear polarization output is optional
Narrow linewidth
All-fiber structure design

Applications

Medical treatment
Mid-infrared pump source
LiDAR
Device testing
Plastic material processing
Nonlinear effect studies
Other scientific research tasks

This mode-locked fiber laser provides sub-picosecond pulses at 1560nm.

Measured spectrum (Output=10W)

Techwin is known as an expert company in developing and manufacturing of fiber lasers, fiber amplifiers and fiber sources. We also strive to provide our customers with custom fiber laser solutions suited for your applications. All of our high-power fiber lasers and amplifiers are manufactured following a rigorous quality management system. We are more than happy to share our laser technology with worldwide customers, and committed to earn the ongoing trust of our customers with our industrial fiber lasers coupled with expert support and service in various industrial segments.
