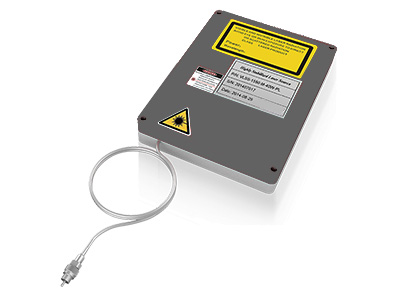

MHz/GHz 1.0µm Narrow Linewidth Fiber Laser

Fiber laser components, Industrial fiber lasers

Based on a master oscillator power amplifier (MOPA) design, the narrow linewidth fiber laser is a single frequency laser which has seed laser of MHz level. Optimally designed LiNbO3 phase modulator allows spectral broadening, the linewidth of output laser is at GHz level, it is possible to modulate the linewidth by means of radio frequency (RF) signal. The low noise fiber amplifier is used to extend the output power. This fiber laser is suitable for high power narrow linewidth single frequency amplifier system, the linewidth of GHz level enables SBS threshold to be greatly increased and provides output power at the kilowatt level, applicable to coherent beam combination (CBC) and spectral beam combination (SBC) system. The core technical parameters are displayed on LCD panel and the output power is adjustable, the fiber laser is widely applied in laboratory applications for its easy operation.

MHz 1.0µm Narrow Linewidth Single Frequency Fiber Laser

Features

MHz linewidth, single frequency
Low relative intensity noise
High frequency stability
Linear polarization output is optional, high polarization extinction ratio (PER)
Multiple wavelengths are optional

Applications

Atom cooling and trapping
Coherent beam combination (CBC) and spectral beam combination (SBC)
Frequency doubling
LiDAR and sensing
Testing and measuring
Other scientific research tasks

GHz 1.0µm Narrow Linewidth Single Frequency Fiber Laser

Features

LiNbO3 phase modulator for spectral broadening
Output linewidth is controllable
Single frequency single longitudinal mode seed laser
Low phase noise and ultra-low relative intensity noise
High frequency stability
Linear polarization output is optional
Wavelength range is tunable

Applications

Seed source of high power narrow linewidth fiber amplifier
Coherent beam combination (CBC)
Spectral beam combination (SBC)
Other scientific research tasks
