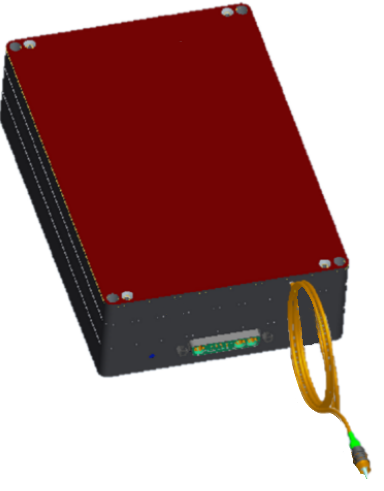

1927nm Thulium Fiber Laser Source
The 1927nm Fiber Laser Module of Techwin Laser use the Master Oscillator Power-Amplifier (MOPA) structure or the direct resonator cavity structure design to achieve the high power output.The generally adopted pumps are the semiconductor or fiber lasers in the bands of 793nm and 1570nm. The output polarization can be linear or random. This laser is suitable for the applications of device testing, medical treatment, remote sensing, LiDAR and mid-infrared pumping, etc.
1927nm Thulium Fiber Laser Source
- High output power
- High stability and reliable performance
- All-fiber structure
- Excellent beam quality
- Linear polarization output optional
- Air-cooling integrated design
- CW/Modulation
- Medical treatment
- Mid-infrared pump source
- Device testing
- LiDAR
- Plastic material processing
- Nonlinear effect study
- Other scientific research
Specification
Parameter | Unit | Specifications | |||
Part No. | TFL-1927-2/25-SMA | ||||
Wavelength | nm | 1927 | |||
FWHM | nm | <2 | |||
Mode of Operation | Pulsed | ||||
Pulse Repetition Rate | Hz | 1-3000 | |||
Average Power | W | 25 | |||
Peak Power | W | 2-25 | |||
Pulse Energy | mJ | 1-200 | |||
Pulse Width | ms | 0.1-10 | |||
Power Tunability | % | 10-100 | |||
Aiming Beam(option): | Red 650nm, Power adjustable 0-1mW | ||||
Output Fiber | 25um single mode fiber(NA:0.11) with SMA905 as a standard output end | ||||
Single-mode Beam Quality M2 | <1.20 | ||||
Size( W*D*H) | mm | 200*270*100 | |||
Weight | KG | <4 | |||
Cooling | Air-cooled | ||||
Port | DB13, RS232, DC Input 24V | ||||
Power Voltage | VDC | 24 | |||
Applications
Autonomous Driving
Coherent Doppler LiDAR for Wind Sensing
3D Laser Scanning and Laser Ranging
Phase-sensitive Optical Time Domain Reflectometer (Φ-OTDR) sensing system
Brillouin OTDR (BOTDR) Sensing System
