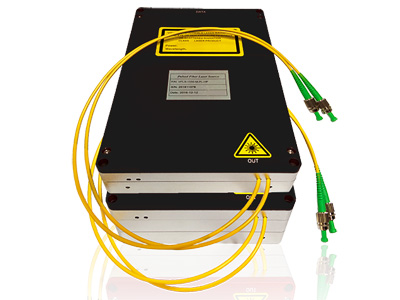

1550nm Long Pulsed Single Frequency Fiber Laser, CKLIS-LP (Short Distance, Polarization Maintaining)

Laser modules and components, Fiber laser components

Features

Eye-safe operating wavelength: 1550nm
Single pulse energy: up to 10uJ
Repetition rate adjusting range: 5-100kHz
Pulse width: 100-3000ns
Single-mode output
High polarization extinction ratio (PER)

Specification

Parameter	Unit	Specification
Parameter	Unit	Min.	Typ.	Max.
Part No.		CKLIS-1550-M-SF-LP
Center Wavelength	nm	1545	1550	1565
Peak Power @200ns pulse width	W	–	–	50
Pulse Energy @200ns,20kHz	uJ	–	10	–
Pulse width	ns	100	200	1000
Repetition Rate	kHz	5	10	100
Beam Quality	M²	–	1.05	1.1
Output polarization		Linear polarization
PER	dB	20	>23	–
Output Isolation	dB	50	–	–
Output Power Stability	%	–	±0.5	±1
Output Fiber Type		PM1550-XP
Output Fiber Length	m	0.5	–	1
Output Fiber Connector			FC/APC
Control interface		RS232
Power Supply	VDC	12~14
Operating Temperature	°C	-20	–	50
Storage Temperature		-40	–	70
Cooling Mode		Air-cooled
Dimensions		200x135x60
