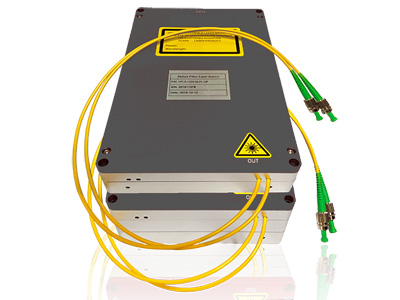

1550nm Long Pulsed Single Frequency Fiber Laser, CKLIS-HP (Long Distance, Polarization Maintaining)

Laser modules and components, Fiber laser modules

Features

Eye-safe operating wavelength: 1550nm
Single pulse energy: up to 150uJ
Repetition rate adjusting range: 5-20kHz
Pulse width: 100-3000ns
Near diffraction-limited beam quality
High polarization extinction ratio (PER)

Specification

Parameter	Unit	Specification
Parameter	Unit	Min.	Typ.	Max.
Part No.		CKLIS-1550-M-SF-HP
Center Wavelength	nm	1545	1550	1565
Peak Power @200ns pulse width	W	–	–	750
Pulse Energy @200ns,20kHz	uJ	–	150	160
Pulse width	ns	100	200/400/800	3000
Repetition Rate	kHz	5	–	20
Beam Quality	M²	–	< 1.3	1.5
Output polarization		Linear polarization
PER	dB	20	>23	–
Output Isolation	dB	50	–	–
Output Power Stability	%	–	±0.5	±1
Output Fiber Type		PLMA-GDF-25/300
Output Fiber Length	m	0.5	–	1
Output Fiber Connector			FC/APC
Control interface		RS232
Power Supply	VDC	12~14
Operating Temperature	°C	-20		50
Storage Temperature	°C	-40		70
Cooling Mode		Air-cooled
Dimensions	mm	200x135x60

Techwin is known as an expert company in developing and manufacturing of fiber lasers, fiber amplifiers and fiber sources. We also strive to provide our customers with custom fiber laser solutions suited for your applications. All of our high-power fiber lasers and amplifiers are manufactured following a rigorous quality management system. We are more than happy to share our laser technology with worldwide customers, and committed to earn the ongoing trust of our customers with our industrial fiber lasers coupled with expert support and service in various industrial segments.
