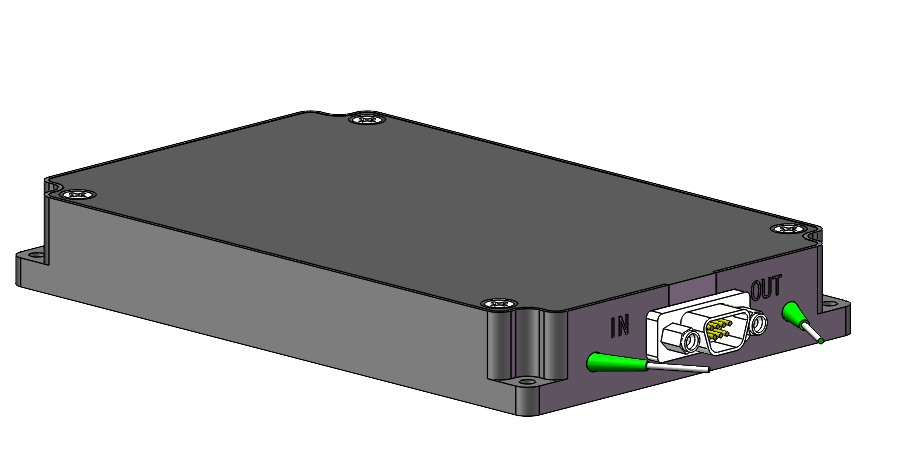

Semiconductor Optical Amplifier (SOA) Module
This product is used for amplifying optical signals with wavelengths around 1310nm, and can achieve single or multi wavelength amplification at 1290nm, 1300nm, and 1310nm.
Semiconductor Optical Amplifier (SOA) Module
- Working temperature -5℃~65℃
- Storage temperature -40℃~85℃
- Working voltage 5V
- Weight ≤200g
- Power waste ≤10W
- Communication mode RS422 (customizable)
Main features and functions:
- Small size
- Low power consumption
- Low gain flatness
- Optical power detection
- ACC, APC, and AGC control
Application scenarios: Fiber optic communication (1310nm), fiber optic sensing
Applications
Autonomous Driving
Coherent Doppler LiDAR for Wind Sensing
3D Laser Scanning and Laser Ranging
Phase-sensitive Optical Time Domain Reflectometer (Φ-OTDR) sensing system
Brillouin OTDR (BOTDR) Sensing System
