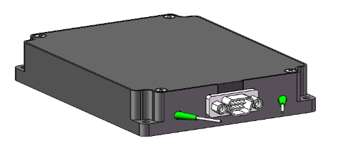

Polarization maintaining fiber amplifier (MSA size)
This product is a polarization maintaining fiber amplifier that uses fully polarization maintaining devices to ensure that the polarization state of the input light remains unchanged after amplification and has a high output extinction ratio. It can achieve a single wavelength of 18dBm optical output in the C-band, while also having a lower noise index than conventional amplifiers. Customizable output power up to 23dBm.
Polarization maintaining fiber amplifier (MSA size)
- Working temperature -5℃~65℃
- Storage temperature -40℃~85℃
- Working voltage 5V
- Weight ≤200g
- Power waste ≤6W
- Communication mode RS422 (customizable)
Main features and functions:
- Small size
- High gain
- Low noise
- No light off pump
- Optical power detection
- Polarization maintaining single-mode (slow axis operation, dual axis operation optional)
- ACC, APC, and AGC control
Application scenarios: Coherent laser communication, fiber optic sensing, LiDAR
Applications
Autonomous Driving
Coherent Doppler LiDAR for Wind Sensing
3D Laser Scanning and Laser Ranging
Phase-sensitive Optical Time Domain Reflectometer (Φ-OTDR) sensing system
Brillouin OTDR (BOTDR) Sensing System
