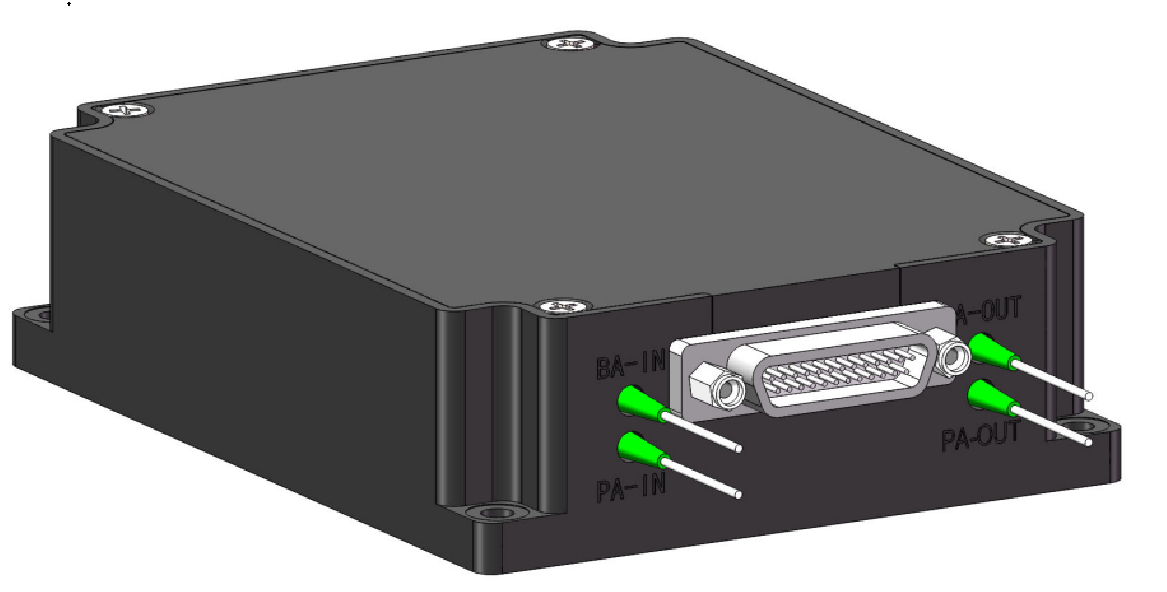

Commercial aerospace integrated fiber amplifier
This product includes a high-power fiber amplifier (BA) and a low-noise fiber amplifier (PA). BA can achieve optical power outputs of 1W, 2W, 3W, and 4W. PA can amplify weak optical signals with a minimum of -50dBm. The module has undergone radiation resistance design, thermal vacuum design, and mechanical design to adapt to the commercial aerospace environment.
Commercial aerospace integrated fiber amplifier
- Working temperature -20℃~60℃
- Storage temperature -40℃~85℃
- Working voltage 5V or 12V optional
- Weight ≤550g
- Axial total dose 50krad
- Power waste 20W@1W，30W@2W 36W@3W，42W@4W
- Communication mode RS422 (customizable)
Main features and functions:
- Integration
- Radiation resistance
- High power
- Low noise
- High reliability
- No light off pump
- Software in orbit upgrade
- Ultra low optical power detection
- ACC and APC control
Applications
Autonomous Driving
Coherent Doppler LiDAR for Wind Sensing
3D Laser Scanning and Laser Ranging
Phase-sensitive Optical Time Domain Reflectometer (Φ-OTDR) sensing system
Brillouin OTDR (BOTDR) Sensing System
