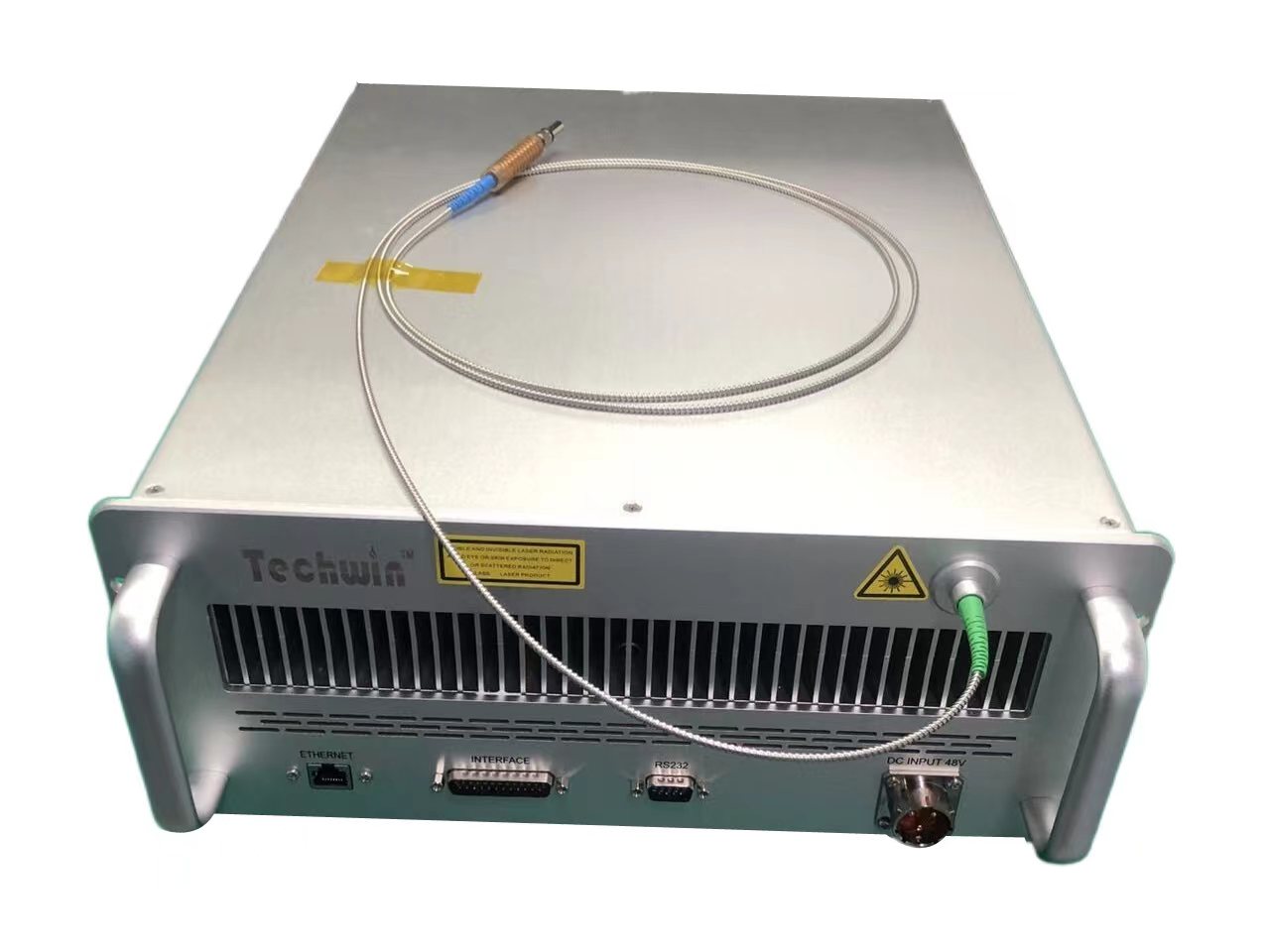

1940nm QCW Thulium Fiber Laser Source TFL-35/350-QCW

Techwin TFL-50/500-QCW Thulium quasi-cw fiber laser is new compact thulium fiber laser module at 1940nm wavelength. Module operates in millisecond-pulse mode with peak power up to 350W, average power up to 35W, and pulse energy up to 4J. The module is air-cooled and can be easily integrated in laser system

These compact energy efficient and reliable lasers are used in a diverse range of industrial, scientific and medical applications including laser pumping, welding of transparent polymers and a variety of surgical applications such as open, laparoscopic and endoscopic inclusion, excision, resection, ablation, vaporization, coagulation and hemostasis of soft tissue in urology, urinary lithotripsy and general surgery. Special models for integration into OEM medical equipment are available

1940nm QCW Thulium Fiber Laser Source TFL-35/350-QCW

Features
  • Wavelength 1940nm
  • Maximum Peak Power 350W
  • Maximum Average Power 35W
  • Pulse Energy up to 4J
  • Single-mode or Multi-mode Beam Quality
Applications
  • Scientific, Industrial and Medical Application
  • Open and Endoscopic Surgery in Urology
  • Welding of Transparent Polymers
  • Lithotripsy and Percutaneous Urinary Lithotripsy
  • Mid-IR Solid State Laser Pumping
  • General Surgery

Specifications

ParameterUnitSpecifications
Part No. TFL-35/350-QCW
Wavelengthnm1940
FWHMnm<2
Mode of Operation Pulsed/CW
Pulse Repetition RateHz1-1400
Average PowerW35W = 0.025J x 1400 Hz and 3.5J x 10 Hz
Max Peak PowerW350
Pulse EnergyJ0.025-4
Pulse Widthms0.2-50
Power Tunability%10-100
Power Stability%-1
Aiming Beam: Green 500-550nm, Power adjustable 0-5mW
Output Fiber 25um fiber with SMA905 as a standard output end
Single-mode Beam Quality M2 <1.20
Size( W*D*H)mm360*490*160
WeightKG<20
Cooling Air-cooled
Power VoltageVDC36-48
