1927nm Thulium Fiber Laser Source

The 1927nm Fiber Laser Module from Techwin Laser is engineered to deliver high-power performance through either a Master Oscillator Power Amplifier (MOPA) configuration or a direct resonator cavity design. Depending on the application requirement, the system typically uses semiconductor or fiber laser pumps operating at 793nm or 1570nm.

The module can provide either linear or random polarization, giving it the flexibility to support a wide range of technical and industrial needs. Its stable output, efficient design, and adaptability make it a strong choice for precision-driven applications.

This laser module is well suited for device testing, medical procedures, remote sensing, LiDAR systems, and mid-infrared pumping. With its reliable architecture and broad usability, it can support environments where consistency, power, and performance are critical.

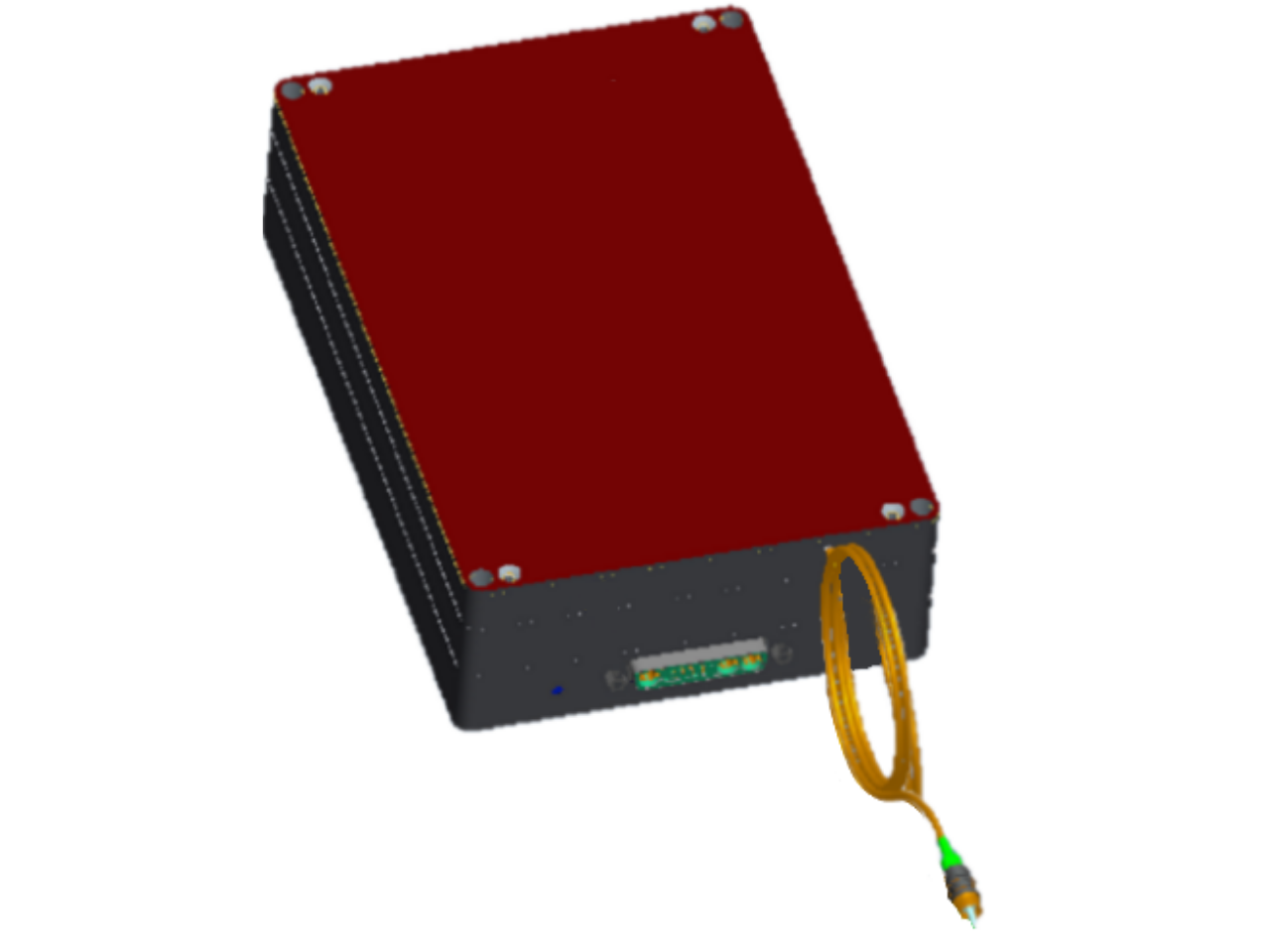

1927nm Thulium Fiber Laser Source

Features
  • High output power
  • High stability and reliable performance
  • All-fiber structure
  • Excellent beam quality
  • Linear polarization output optional
  • Air-cooling integrated design
  • CW/Modulation
Applications
  • Medical treatment
  • Mid-infrared pump source
  • Welding of Transparent Polymers
  • Device testing
  • LiDAR
  • Plastic material processing
  • Nonlinear effect study
  • Other scientific research

Specifications

ParameterUnit   Specifications
Part No. TFL-1927-2/25-SMA
Wavelength

nm

1927

FWHMnm<2
Mode of Operation Pulsed
Pulse Repetition RateHz 1-3000
Average PowerW25
Peak PowerW 2-25
Pulse EnergymJ1-200
Pulse Widthms 0.1-10
Power Tunability%10-100
Aiming Beam(option):  Red 650nm, Power adjustable 0-1mW
Output Fiber 25um single mode fiber(NA:0.11) with SMA905 as a standard output end
Single-mode Beam Quality M2  <1.20
Size( W*D*H)mm200*270*100
WeightKG <4
Cooling Air-cooled
Port  DB13, RS232, DC Input 24V
Power VoltageVDC24

Applications

Autonomous Driving

Autonomous Driving

Coherent Doppler LiDAR for Wind Sensing

Coherent Doppler LiDAR for Wind Sensing

3D Laser Scanning and Laser Ranging

3D Laser Scanning and Laser Ranging

Phase-sensitive Optical Time Domain Reflectometer (Φ-OTDR) sensing system

Phase-sensitive Optical Time Domain Reflectometer (Φ-OTDR) sensing system

Brillouin OTDR (BOTDR) Sensing System

Brillouin OTDR (BOTDR) Sensing System

Distributed Temperature Sensing (DTS) System

Distributed Temperature Sensing (DTS) System
